AUR Flume Test for Pier with Tires:

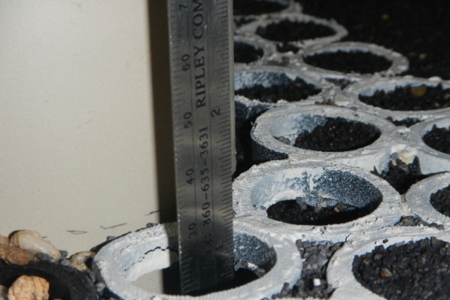

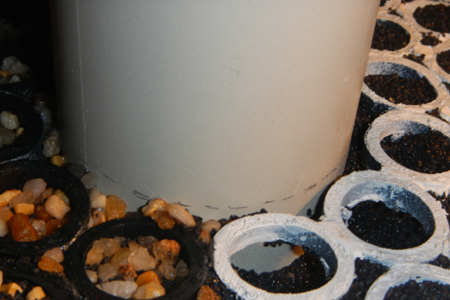

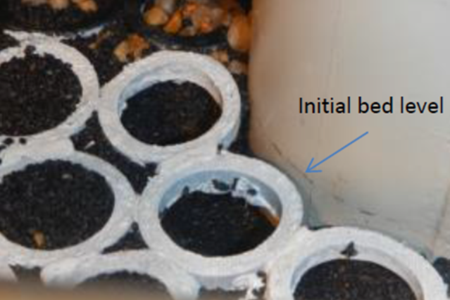

The flume test results show the scour occurred near the pier nose although the gravels are trapped in the tire. It shows the very similar results as the armor (Czech hedgehog) units.

The tires are not able to prevent the scour.

Unsuccessful Tires Countermeasure

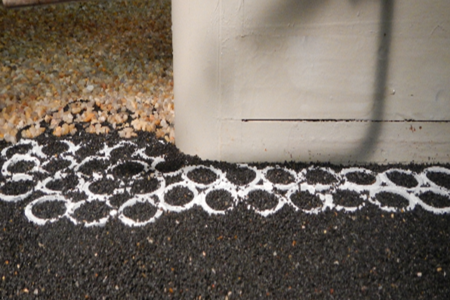

Before Flume Test
